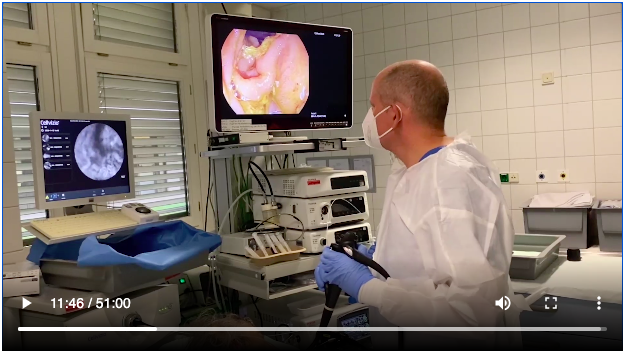

To view the webinar by Prof. Kiesslich, a free DocMatter account is required.
Registration takes only 1 minute and allows you to ask questions directly to the webinar presenter and to your peers.


Happy cooking family

Understanding the Relationship Between IBS and Food Sensitivity

Irritable Bowel Syndrome (IBS) affects a large population globally and patients are affected with chronic symptoms of abdominal pain and intestinal symptoms (constipation, cramping, etc.).

Diagnosis of IBS is based on symptoms and ruling out conditions such as organic diseases that mimic the disorder observed through endoscopy and other exams.

Although evidence is inconclusive on the relationship between specific foods and IBS, a significant part of the IBS patient’s workup is testing for food-related issues (sensitivities/allergies). Therefore, it is important to properly understand the role that food sensitivity plays in contributing to symptoms of IBS.


Clinical Challenges Faced by Physicians in Diagnosing Food Allergies

For IBS patients, it is important to determine Food allergy-related symptoms to orient a treatment, ie exclusion/specific diet and/or medication.

Typical food allergy triggers an immune system reaction involving release of Immunoglobin E [IgE] and histamine causing intense body reactions. Delayed discomfort after food absorption might be due to the change of intestine motor and sensory function as a result, of low grade inflammation from food allergen, this would be considered as atypical food allergy.1(i.e., non Immunoglobin E [IgE] mediated)

Diagnosing food allergies

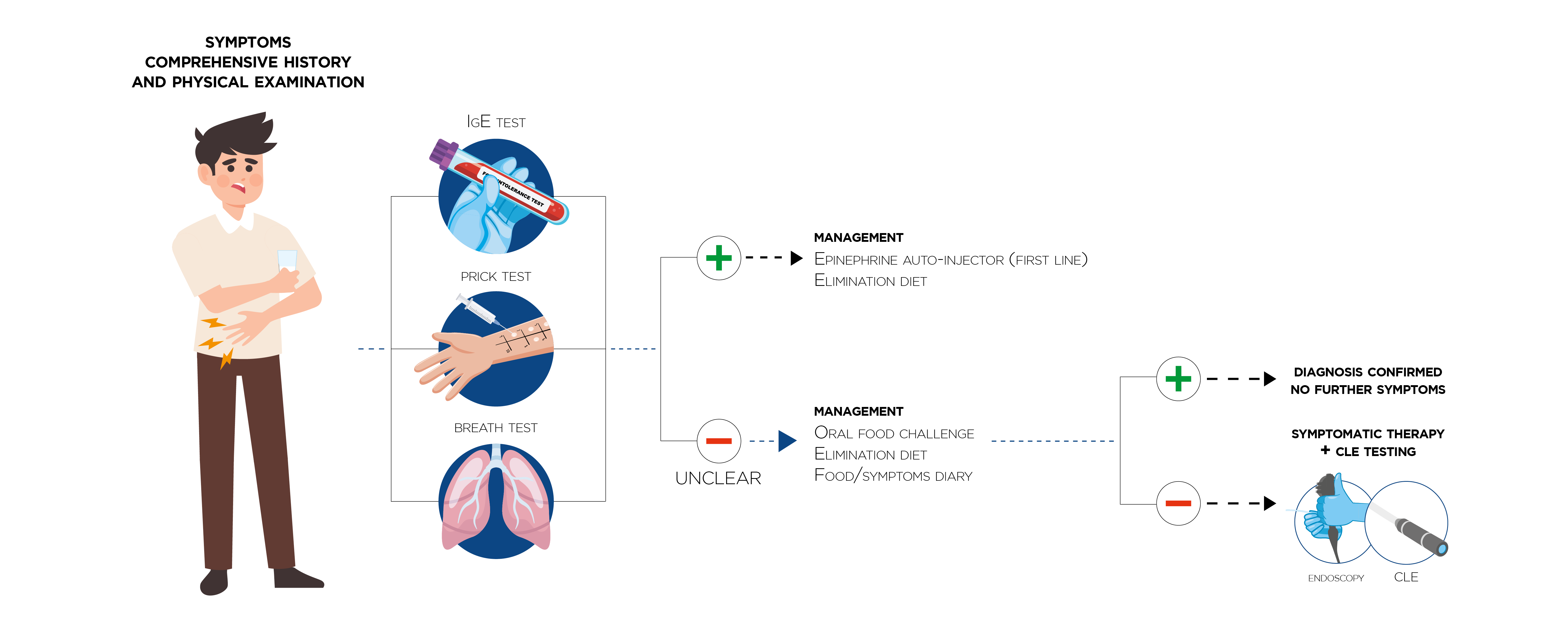

This figure shows the typical algorithm used to diagnose food allergies. Current diagnostic methods for typical and atypical food allergies, especially non-IgE mediated ones, have limited diagnostic performance accuracy and are not reproducible.8,9

Cellvizio Advanced Imaging Technology

Cellvizio is a real-time in vivo cellular imaging platform that uses probe-based Confocal Laser Endomicroscopy (pCLE) to provide microscopic visualization of the mucosa during an endoscopy procedure. It allows quick and thorough diagnostic assessment of the tissue at the cellular level.

Cellvizio enables the assessment of functional disorders such as intestinal barrier dysfunction and intestinal barrier cell shedding as they happen in real-time, which constitute positive markers for food allergies.2

Studies using endomicroscopy found that more than 50% of IBS patients could have atypical food allergies.3,4

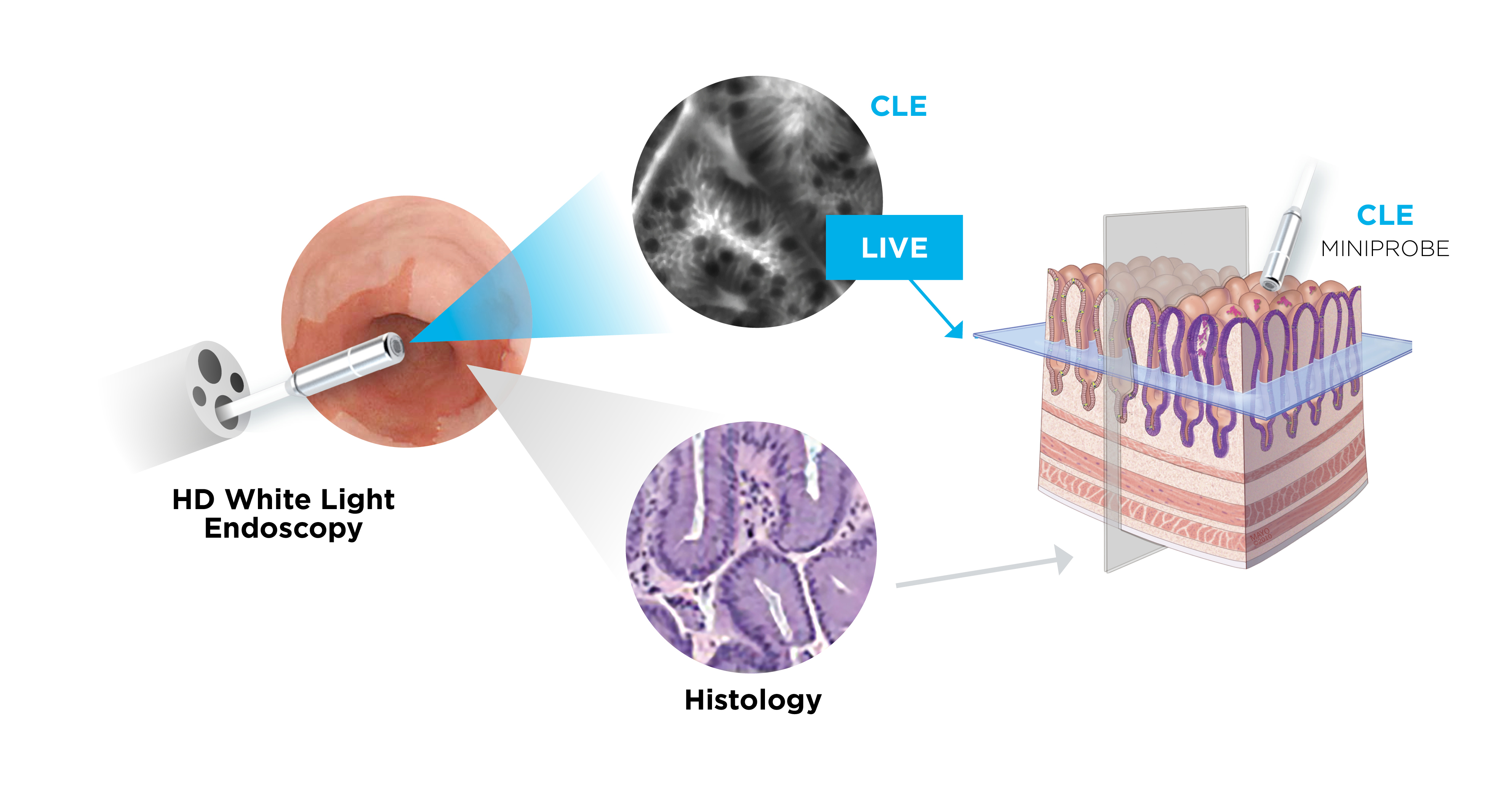

CLE Technology
Cellvizio FAST Procedure

The Cellvizio procedure is easy to integrate into your existing workflow and is described as per the following steps6, 7

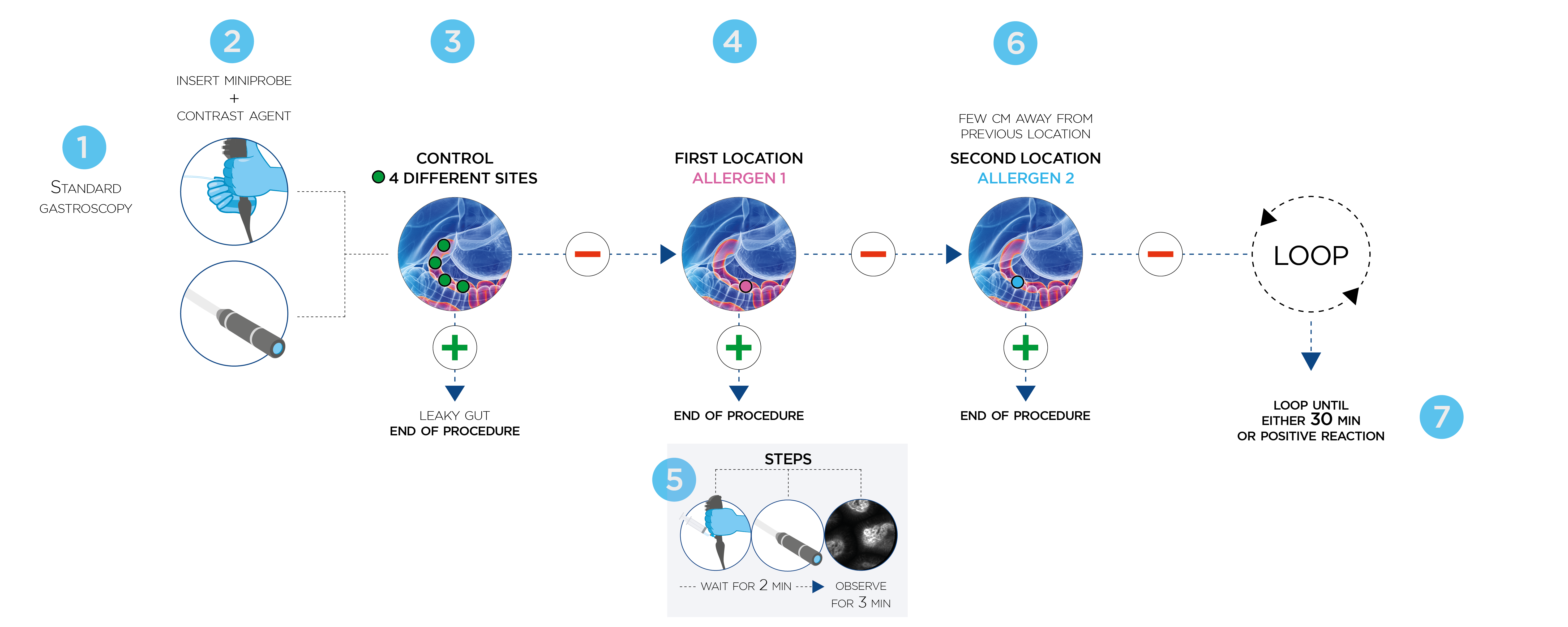

Fast Procedure STEPS

1. Perform a standard gastroscopy to observe any sign(s) of abnormal mucosal structural defect that would suggest a known gastrointestinal disease. In the case of any mucosal abnormality observed on endoscopy, the endomicroscopic procedure may not be applicable.

2. Inject contrast agent intravenously.

3. To establish a baseline, perform Cellvizio imaging on the duodenum at a minimum of 4 sites (about 20 seconds each) to verify mucosal integrity (i.e., no contrasting agent leakage into the lumen) prior to any provocation.

4. Through the working channel of the endoscope, apply one food allergen onto the duodenal mucosa, starting from the distal part.

  • Leave space between each provocation site
  • Start with the food allergen that will less likely trigger a reaction

5. Wait for 2 minutes after the application of food before starting imaging and observe

  • If the observed reaction is positive (CLE+), conclude the test.
  • If the observed reaction is negative (CLE-), extract the probe, flush with saline in the channel, and move to the next site.

6. Repeat steps 4 and 5. Before applying a new allergen, move the endoscope to the new site towards the proximal end of the duodenum.

7. The test should conclude about 30 minutes after the injection of the contrast agent due to the increased risk of false positives. Eventually, the contrast agent will be visible in the lumen (but with no cell shedding).



Suggested Concentrations for Most Common Food Allergens7

Allergens IBS



Cellvizio Image Patterns and Interpretations7:

IBS Landing Page FAST pattern video

IBS FAST on Cellvizio.net

Major Publications on Endomicroscopy for Food Sensitivity:

Fritscher-Ravens A et al. Confocal Endomicroscopy Shows Food-Associated Changes in the Intestinal Mucosa of Patients With Irritable Bowel Syndrome. Gastroenterology 2014;147:1012–1020. Link

Fritscher-Ravens A, Pflaum T, Mösinger et al. Many Patients With Irritable Bowel Syndrome Have Atypical Food Allergies Not Associated With Immunoglobulin E. Gastroenterology. 2019 Jul;157(1):109-118. Link (Ref 3)
Study Summary to download

  • 50-60% of IBS patients may have a nonclassical food allergy
  • 96% of CLE + patients experienced an improvement in symptoms
  • 68% of CLE+ patients experienced over 80% improvement within 3 to 6 month of allergen exclusion

Kiesslich R, Adib-Tezer H, Teubner D et al. Endomicroscopic detection of atypical food allergy in patients with irritable bowel syndrome – a new diagnostic era? DDW 2020, Su1344 (Ref 5)

  • Nearly 59% of patients had food induced leaky gut
  • 84% of patients improved symptoms after exclusion diet

Kiesslich R, Review of Endomicroscopy Diagnostic value of endomicroscopy for gastrointestinal diseases New possibilities and concepts.Techniques and Innovations in Gastrointestinal Endoscopy (2020). Link (Ref 6)

  • Functional imaging with endomicroscopy for diagnosing atypical food allergies has a great potential to establish as an additional part of standard care for food allergy diagnosis

Kiesslich R, Endomicroscopic Diagnosis of Atypical Food Allergies New method White paper 2020. Click to download  (Ref 7)

  • Explanation of the procedure

Fritscher-Ravens A, Exclusion of atypical food allergens detected by confocal endomicroscopy is superior to low fodmap diet in patients with food-sensitive IBS. AGA ABSTRACTS| VOLUME 158, ISSUE 6, SUPPLEMENT 1, S-135, MAY 01, 2020. Link (Ref 8)

  • Symptoms, somatization and anxiety scored better with the CLE-guided allergen exclusion diet than with the Low FODMAP Diet



 If you want more information, contact us



Sign up to receive the latest clinical data

References:

1. Ohman L, Simrén M. Pathogenesis of IBS: role of inflammation, immunity and neuroimmune interactions. Nat Rev Gastroenterol Hepatol. 2010;7:163–173. doi: 10.1038/nrgastro.2010.4).
2. Goetz M, Malek N, Kiesslich R. Microscopic imaging in endoscopy: endomicroscopy and endocytoscopy. Nat Rev Gastroenterol Hepatol. 2014;11, 11–18. doi.org/10.1038/nrgastro.2013.134.
3. Fritscher-Ravens A, Pflaum T, Mösinger et al. Many Patients With Irritable Bowel Syndrome Have Atypical Food Allergies Not Associated With Immunoglobulin E. Gastroenterology. 2019 Jul;157(1):109-118.

4. Crowe SE. Food Allergy Vs Food Intolerance in Patients With Irritable Bowel Syndrome. Gastroenterol Hepatol (N Y). 2019;15(1):38–40. PMID: 30899207; PMCID: PMC6423694.
5. Kiesslich R, Adib-Tezer H, Teubner D et al. Endomicroscopic detection of atypical food allergy in patients with irritable bowel syndrome – a new diagnostic era? DDW 2020, Su1344.
6. Kiesslich R, Review of Endomicroscopy Diagnostic value of endomicroscopy for gastrointestinal diseases New possibilities and concepts.Techniques and Innovations in Gastrointestinal Endoscopy (2020).
7. Kiesslich R, Endomicroscopic Diagnosis of Atypical Food Allergies New method White paper 2020.
8. Food Allergy Research & Education (FARE). foodallergy.org. Accessed March 2, 2020. https://www.foodallergy.org/sites/default/files/migrated-files/file/Final-FARE-Food-Allergy-Facts-Statistics.pdf
9. Čelakovská J, Krcmova l, Bukac J, Vaneckova J. (2017) Sensitivity and specificity of specific IgE, skin prick test and atopy patch test in examination of food allergy. Food and Agricultural Immunology. 2017;28:2, 238-247. doi: 10.1080/09540105.2016.1258548.
